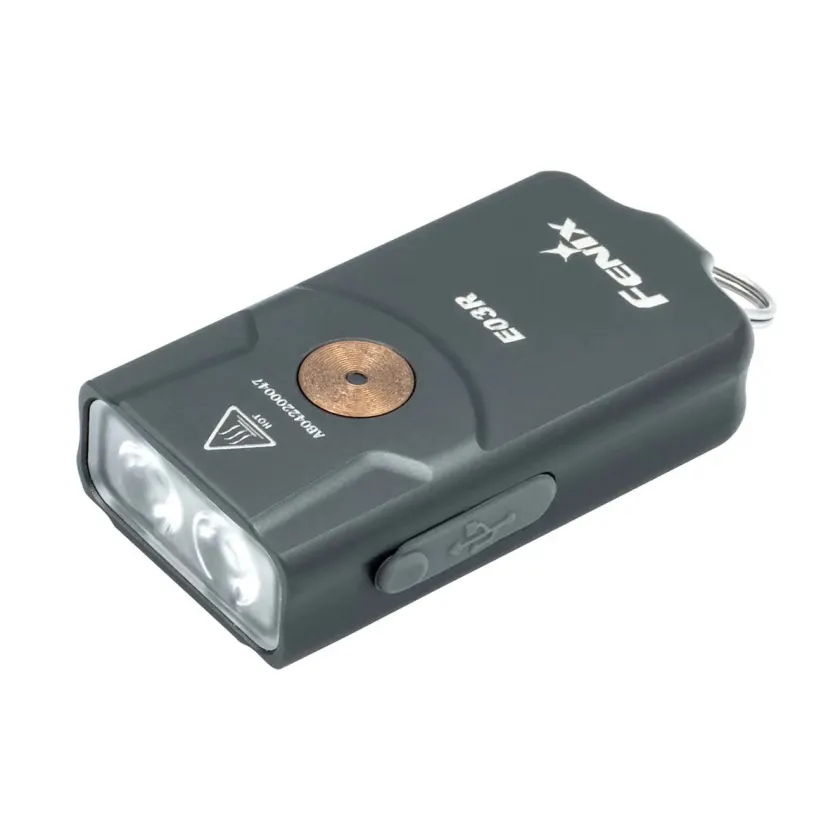

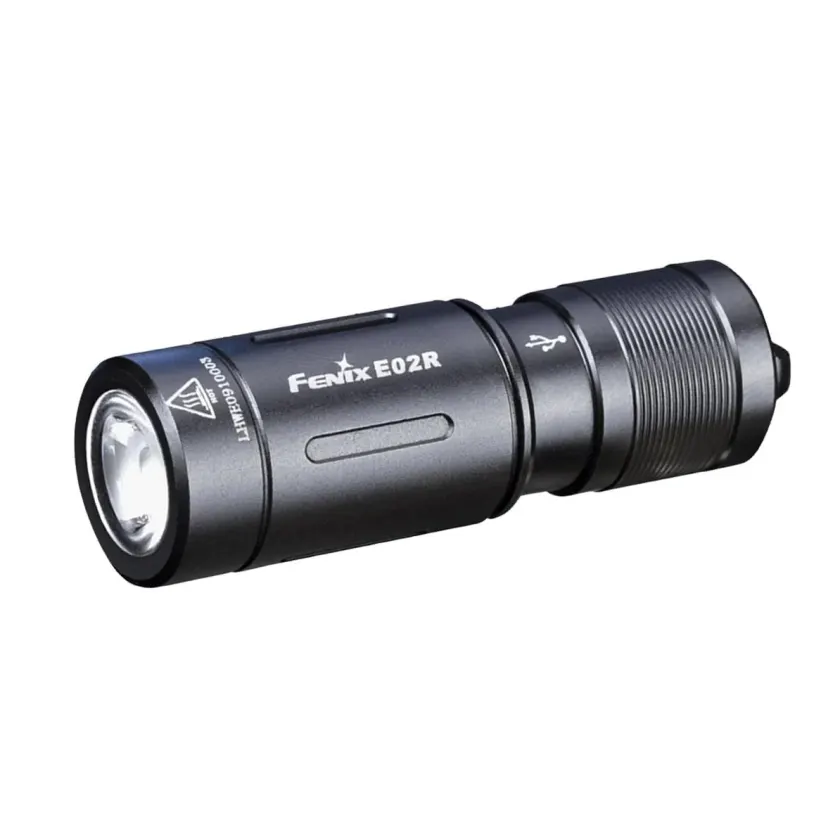

Fenix E02R vs Fenix E03R
What E02R does better (4) and where E03R wins (5) — every spec side by side.
Dimensions
Size comparison
E02RE03R
| E02R | E03R | Difference | |
|---|---|---|---|
| Length / height | 48 mm | 47 mm | +1 mm |
| Head diameter / width | 15 mm | 24 mm | −9 mm |
| Body diameter / depth | 14 mm | 12 mm | +2 mm |
| Weight | 15 g | 22 g | −7 g |
Drawn to the same scale from the official dimensions (front and side).
Why is E02R better than E03R?
- Beam distance (ANSI FL1)49 m vs 42 m+17%
- Weight15 g vs 22 g+47%
- Peak beam intensity600 cd vs 440 cd+36%
- Water protection (IPx)IPx8 vs IPx6+33%
Why is E03R better than E02R?
- Maximum runtime6.5 h vs 18 h2.8×
- USB-C chargingNo · E02R: Yes
- Maximum output200 lm vs 260 lm+30%
- Battery capacity120 mAh vs 200 mAh+67%
- Brightness levels2 vs 42×
Specifications
Side by side
| Light output | ||
| Maximum output | 200 lm | 260 lm |
| Peak beam intensity | 600 cd | 440 cd |
| Beam distance (ANSI FL1) | 49 m | 42 m |
| Light source | LED | LED |
| LED & beam | ||
| LED emitter | Cree XP-G2 | — |
| LED maker | Cree | — |
| Battery & charging | ||
| Battery | AAA | — |
| Battery capacity | 120 mAh | 200 mAh |
| Maximum runtime | 6.5 h | 18 h |
| Rechargeable | Yes | Yes |
| USB-C charging | No | Yes |
| Battery level indicator | — | Yes |
| Build & durability | ||
| Protection rating | IP68 | IP66 |
| Water protection (IPx) | IPx8 | IPx6 |
| Size & weight | ||
| Length / height | 48 mm | 47 mm |
| Head diameter / width | 15 mm | 24 mm |
| Body diameter / depth | 14 mm | 12 mm |
| Weight | 15 g | 22 g |
| Modes & features | ||
| Brightness levels | 2 | 4 |
| Red light | — | Yes |
