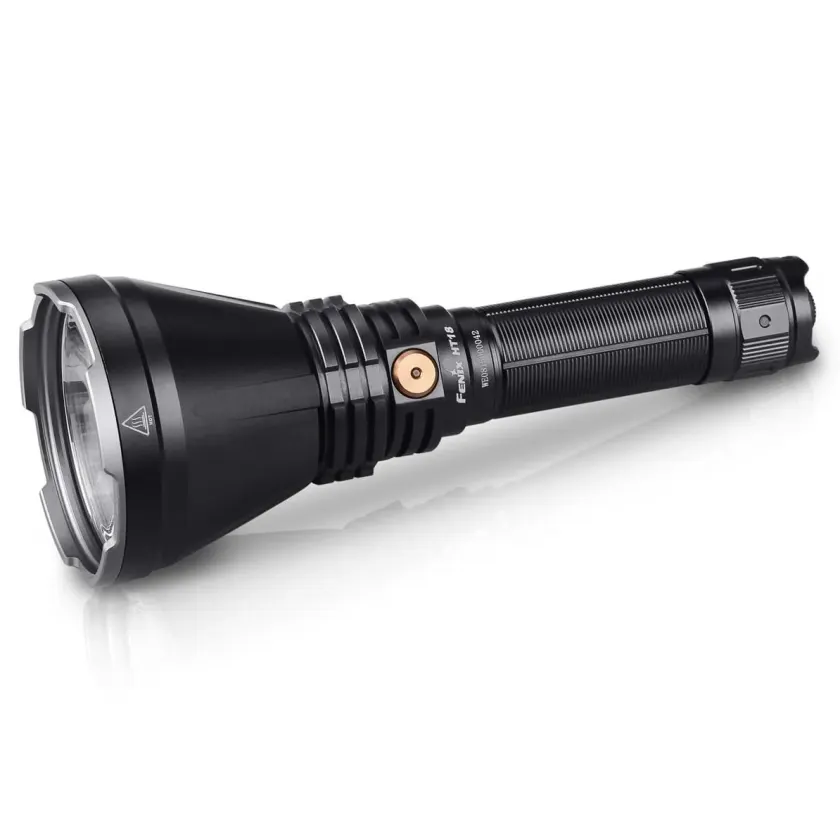

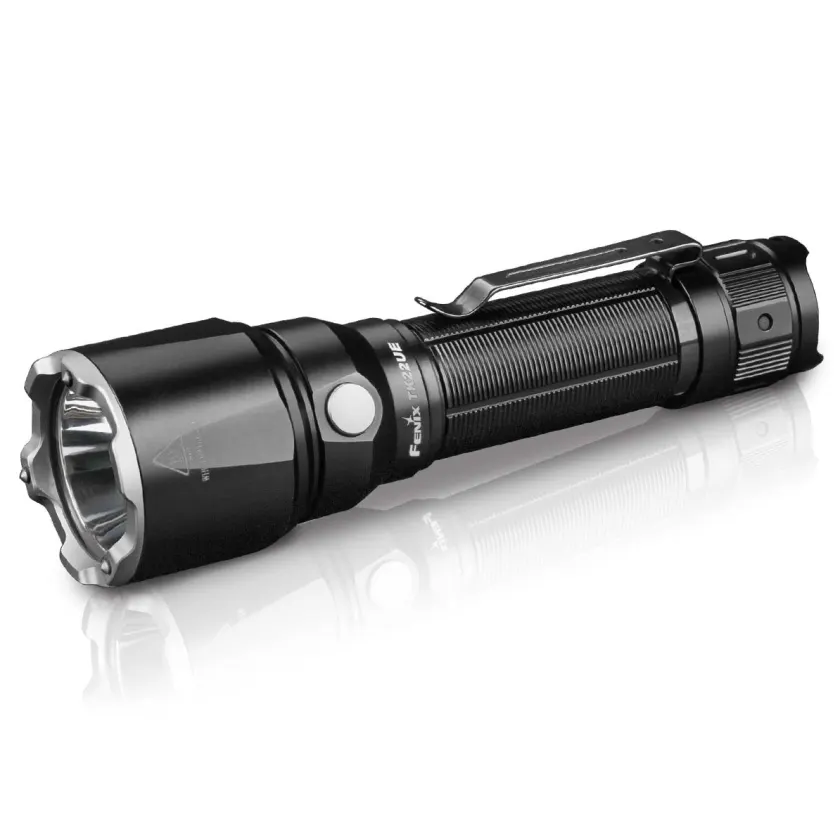

Fenix HT18 vs Fenix TK22 UE
What HT18 does better (2) and where TK22 UE wins (3) — every spec side by side.
Dimensions
Size comparison
HT18TK22 UE
| HT18 | TK22 UE | Difference | |
|---|---|---|---|
| Length / height | 184 mm | 150 mm | +34 mm |
| Head diameter / width | 68 mm | 40 mm | +28 mm |
| Body diameter / depth | 26 mm | 25.4 mm | +0.6 mm |
| Weight | 220 g | 150 g | +70 g |
Drawn to the same scale from the official dimensions (front and side).
Why is HT18 better than TK22 UE?
- Beam distance (ANSI FL1)925 m vs 405 m2.3×
- Peak beam intensity213,910 cd vs 41,010 cd5.2×
Why is TK22 UE better than HT18?
- Weight220 g vs 150 g+47%
- Maximum output1,500 lm vs 1,600 lm+7%
- Maximum runtime61 h vs 80 h+31%
Specifications
Side by side
| Light output | ||
| Maximum output | 1,500 lm | 1,600 lm |
| Peak beam intensity | 213,910 cd | 41,010 cd |
| Beam distance (ANSI FL1) | 925 m | 405 m |
| Light source | LED | LED |
| LED & beam | ||
| LED emitter | Luminus SFT-40 | Luminus SST-40 |
| LED maker | Luminus | Luminus |
| Colour temperature | — | 6,500K |
| Battery & charging | ||
| Battery | 21700 Li-ion, 18650 Li-ion | 21700 Li-ion, 18650 Li-ion |
| Battery capacity | — | 5,000 mAh |
| Maximum runtime | 61 h | 80 h |
| Rechargeable | — | Yes |
| USB-C charging | — | Yes |
| Battery level indicator | Yes | Yes |
| Build & durability | ||
| Protection rating | IP68 | — |
| Water protection (IPx) | IPx8 | — |
| Size & weight | ||
| Length / height | 184 mm | 150 mm |
| Head diameter / width | 68 mm | 40 mm |
| Body diameter / depth | 26 mm | 25.4 mm |
| Weight | 220 g | 150 g |
| Modes & features | ||
| Brightness levels | 4 | 4 |
| Switch | — | Dual switches |
| Tactical tail switch (momentary on) | — | Yes |
| Strobe | Yes | Yes |
| Mode memory | — | Yes |
