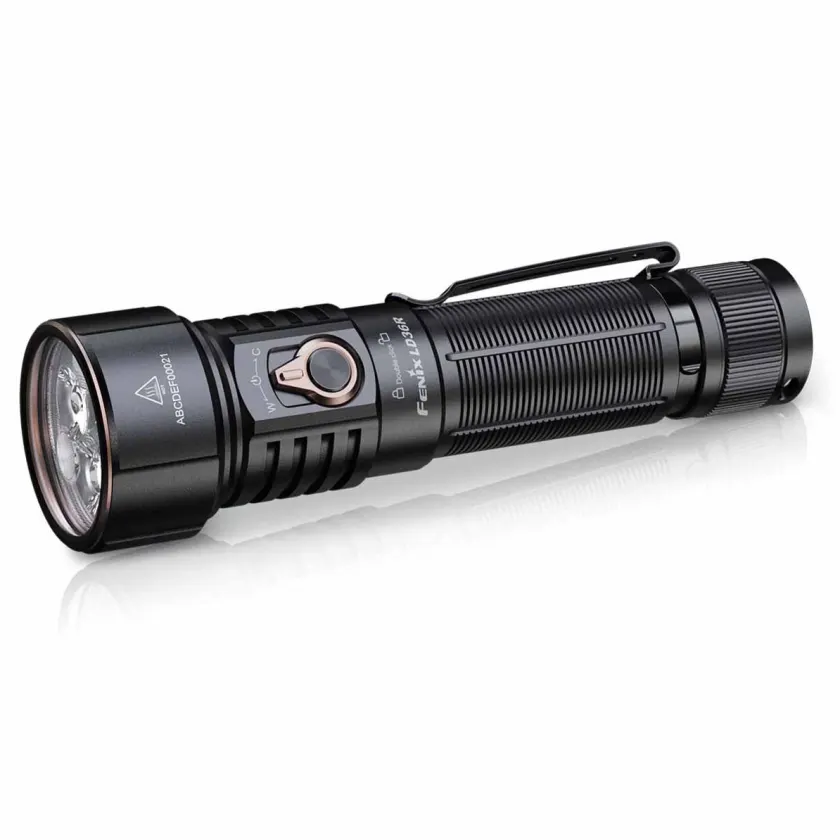

Fenix LD30R vs Fenix LD36R
What LD30R does better (2) and where LD36R wins (3) — every spec side by side.
Dimensions
Size comparison
LD30RLD36R
| LD30R | LD36R | Difference | |
|---|---|---|---|
| Length / height | 129.7 mm | 139.6 mm | −9.9 mm |
| Head diameter / width | 26.5 mm | 40 mm | −13.5 mm |
| Body diameter / depth | 22.6 mm | 26.5 mm | −3.9 mm |
| Weight | 132 g | 231 g | −99 g |
Drawn to the same scale from the official dimensions (front and side).
Why is LD30R better than LD36R?
- Maximum runtime750 h vs 65.3 h11.5×
- Weight132 g vs 231 g+75%
Why is LD36R better than LD30R?
- Maximum output1,700 lm vs 3,600 lm2.1×
- Peak beam intensity16,510 cd vs 37,060 cd2.2×
- Beam distance (ANSI FL1)257 m vs 385 m+50%
Specifications
Side by side
| Light output | ||
| Maximum output | 1,700 lm | 3,600 lm |
| Peak beam intensity | 16,510 cd | 37,060 cd |
| Beam distance (ANSI FL1) | 257 m | 385 m |
| Light source | LED | LED |
| LED & beam | ||
| LED emitter | Luminus SST-40 | Luminus SFT-25R |
| LED maker | Luminus | Luminus |
| Number of LEDs | — | 3 |
| Colour temperature | 6,000K | 6,500K |
| Battery & charging | ||
| Battery | 18650 Li-ion, CR123A | 21700 Li-ion |
| Maximum runtime | 750 h | 65.3 h |
| Rechargeable | Yes | Yes |
| USB-C charging | Yes | Yes |
| Battery level indicator | Yes | Yes |
| Build & durability | ||
| Protection rating | IP68 | IP68 |
| Water protection (IPx) | IPx8 | IPx8 |
| Pocket clip | Yes | — |
| Size & weight | ||
| Length / height | 129.7 mm | 139.6 mm |
| Head diameter / width | 26.5 mm | 40 mm |
| Body diameter / depth | 22.6 mm | 26.5 mm |
| Weight | 132 g | 231 g |
| Modes & features | ||
| Stepless (ramping) brightness | — | Yes |
| Switch | Dual switches | — |
| Tactical tail switch (momentary on) | Yes | — |
| Strobe | Yes | Yes |
| SOS / beacon | Yes | — |
| Red light | — | Yes |
| Green / blue / RGB light | — | Yes |
| Lockout | — | Yes |
| Mode memory | Yes | Yes |
