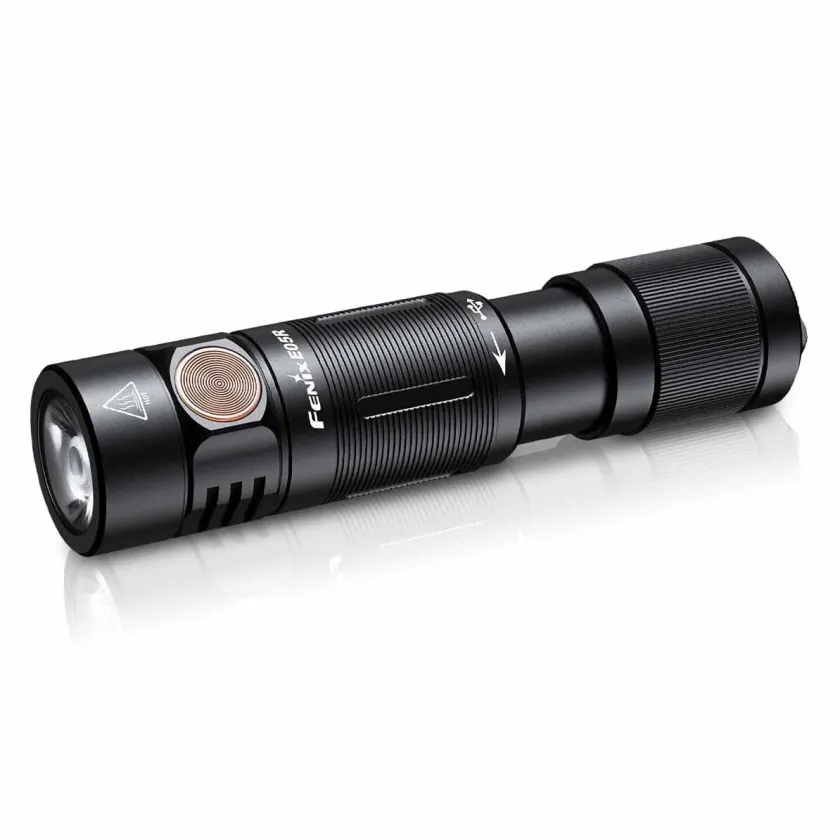

Fenix E03R vs Fenix E05R
What E03R does better (2) and where E05R wins (6) — every spec side by side.
Dimensions
Size comparison
E03RE05R
| E03R | E05R | Difference | |
|---|---|---|---|
| Length / height | 47 mm | 68 mm | −21 mm |
| Head diameter / width | 24 mm | 15.3 mm | +8.7 mm |
| Body diameter / depth | 12 mm | 15 mm | −3 mm |
| Weight | 22 g | 24 g | −2 g |
Drawn to the same scale from the official dimensions (front and side).
Why is E03R better than E05R?
- USB-C chargingYes · E05R: No
- Weight22 g vs 24 g+9%
Why is E05R better than E03R?
- Peak beam intensity440 cd vs 1,020 cd2.3×
- Maximum output260 lm vs 400 lm+54%
- Beam distance (ANSI FL1)42 m vs 64 m+52%
- Maximum runtime18 h vs 30 h+67%
- Battery capacity200 mAh vs 320 mAh+60%
- Water protection (IPx)IPx6 vs IPx8+33%
Specifications
Side by side
| Light output | ||
| Maximum output | 260 lm | 400 lm |
| Peak beam intensity | 440 cd | 1,020 cd |
| Beam distance (ANSI FL1) | 42 m | 64 m |
| Light source | LED | LED |
| LED & beam | ||
| LED emitter | — | Luminus SST-20 |
| LED maker | — | Luminus |
| Battery & charging | ||
| Battery | — | AAA |
| Battery capacity | 200 mAh | 320 mAh |
| Maximum runtime | 18 h | 30 h |
| Rechargeable | Yes | Yes |
| USB-C charging | Yes | No |
| Battery level indicator | Yes | — |
| Build & durability | ||
| Protection rating | IP66 | IP68 |
| Water protection (IPx) | IPx6 | IPx8 |
| Body material | — | Aluminium |
| Size & weight | ||
| Length / height | 47 mm | 68 mm |
| Head diameter / width | 24 mm | 15.3 mm |
| Body diameter / depth | 12 mm | 15 mm |
| Weight | 22 g | 24 g |
| Modes & features | ||
| Brightness levels | 4 | 4 |
| Switch | — | Side switch |
| Red light | Yes | — |
| Lockout | — | Yes |
